QZYB-2/180
|
QZYB-2/180 (EIW) Enameled Copper Rectangular Wire
Class 180 (H) · Polyesterimide Grade 2 Heavy Build IEC 60317-0-2 / GB/T 6109.5
High-performance rectangular copper winding wire for transformers, reactors, and large motors. Excellent thermal stability and mechanical strength.
Product Specifications QZYB-2/180 (EIW Series)
|
Model Number
|
QZYB-2/180 (also known as EIW / polyesterimide enameled rectangular copper wire)
|
|
Brand
|
CHINGCUNG®
|
|
Thermal Class
|
180 (H-Class) — continuous operation
|
|
Conductor Material
|
Electrolytic Copper (Cu-ETP, high purity)
|
|
Insulation Type
|
Modified Polyesterimide resin
|
|
Film Build
|
Grade 2 (Heavy / double coating) — standard
|
|
Conductor Shape
|
Rectangular / Flat
|
|
Thickness (T) Range
|
2.0 mm – 5.6 mm
|
|
Width (W) Range
|
3.0 mm – 7.0 mm
|
|
Cut-through Temperature
|
≥300°C
|
|
Standards Compliance
|
IEC 60317-0-2, GB/T 6109.5, NEMA MW 30-C
|
|
Application
|
Transformers, reactors, traction motors, inductors, wind turbine generators
|
Standard Bare Conductor Sizes (T × W) — Grade 2 Thickness × Width in mm
|
Thickness (T) mm
|
Width (W) mm
|
Min Film Increase (mm)
|
Max O.D. (T × W) mm
|
Approx. Equivalent Round Cu
|
|
2.00
|
3.00
|
0.12
|
2.24 × 3.24
|
φ2.0 mm
|
|
2.00
|
4.00
|
0.12
|
2.24 × 4.24
|
φ2.5 mm
|
|
2.00
|
5.00
|
0.12
|
2.24 × 5.24
|
φ3.0 mm
|
|
2.50
|
4.00
|
0.14
|
2.78 × 4.28
|
φ3.0 mm
|
|
2.50
|
5.00
|
0.14
|
2.78 × 5.28
|
φ3.5 mm
|
|
3.00
|
4.00
|
0.15
|
3.30 × 4.30
|
φ3.5 mm
|
|
3.00
|
5.00
|
0.15
|
3.30 × 5.30
|
φ4.0 mm
|
|
3.00
|
6.00
|
0.15
|
3.30 × 6.30
|
φ4.5 mm
|
|
3.50
|
5.00
|
0.15
|
3.80 × 5.30
|
φ4.5 mm
|
|
3.50
|
6.00
|
0.15
|
3.80 × 6.30
|
φ5.0 mm
|
|
4.00
|
5.00
|
0.16
|
4.32 × 5.32
|
φ5.0 mm
|
|
4.00
|
6.00
|
0.16
|
4.32 × 6.32
|
φ5.5 mm
|
|
4.00
|
7.00
|
0.16
|
4.32 × 7.32
|
φ6.0 mm
|
|
4.50
|
6.00
|
0.17
|
4.84 × 6.34
|
φ5.5 mm
|
|
4.50
|
7.00
|
0.17
|
4.84 × 7.34
|
φ6.0 mm
|
|
5.00
|
6.00
|
0.17
|
5.34 × 6.34
|
φ6.0 mm
|
|
5.00
|
7.00
|
0.17
|
5.34 × 7.34
|
φ6.5 mm
|
|
5.60
|
7.00
|
0.18
|
5.96 × 7.36
|
φ6.5 mm
|
*Grade 1 / Grade 3 available upon request. Film increase values are minimum per side. Custom dimensions available for volume orders.
Key Advantages
· ✓ High conductivity — electrolytic copper core
· ✓ Excellent thermal endurance up to 200°C
· ✓ Grade 2 heavy build for superior dielectric strength
· ✓ Outstanding mechanical strength & abrasion resistance
· ✓ Resistant to moisture, chemicals & refrigerants
· ✓ Optimized space factor for rectangular slots
Primary Applications
· ✓ Power transformers & distribution transformers
· ✓ Reactor windings & chokes
· ✓ Traction motors (railway, EV)
· ✓ Wind turbine generators
· ✓ High-current inductors
· ✓ Rectifier transformers
Manufacturing & Quality
· ✓ ISO 9001:2015 certified facilities
· ✓ Automated enameling lines with real-time QC
· ✓ 100% continuity & dielectric testing
· ✓ Precision dimensional control
· ✓ Strict raw material traceability
Packaging — Export-ready Wooden Spools
Standard packaging: CHINGCUNG enameled rectangular copper wires are wound on heat-treated, fumigation-free wooden spools (ISPM 15 compliant), suitable for direct export to all global markets. The spools are robustly constructed to protect the wire during long-distance shipping and handling.
Spool options: Custom spool sizes available upon request. Wooden spools are secured with moisture-resistant wrapping and labeled per customer requirements.
Export advantage: ISPM 15 heat-treated wood — no additional fumigation required at destination ports. Safe, reliable, and environmentally responsible.
Customization: In addition to standard sizes listed above, we offer custom thickness/width combinations, non-standard dimensions, and special spool packaging. Grade 1 (single coating) and Grade 3 (triple coating) available for specific insulation requirements. Contact our technical team for consultation.
|
CHINGCUNG · Shanghai Husu M&E Technology Co., Ltd
Professional Enameled Wire Manufacturer · Established 2015
|
Tel: +86 13621982708 | Email:️ leon.xu@chingcung.com
Web: https://chingcung.com
|
QZYB-2/180 Enameled Copper Rectangular Wire · Specifications subject to continuous improvement · Complies with RoHS & REACH
|
|

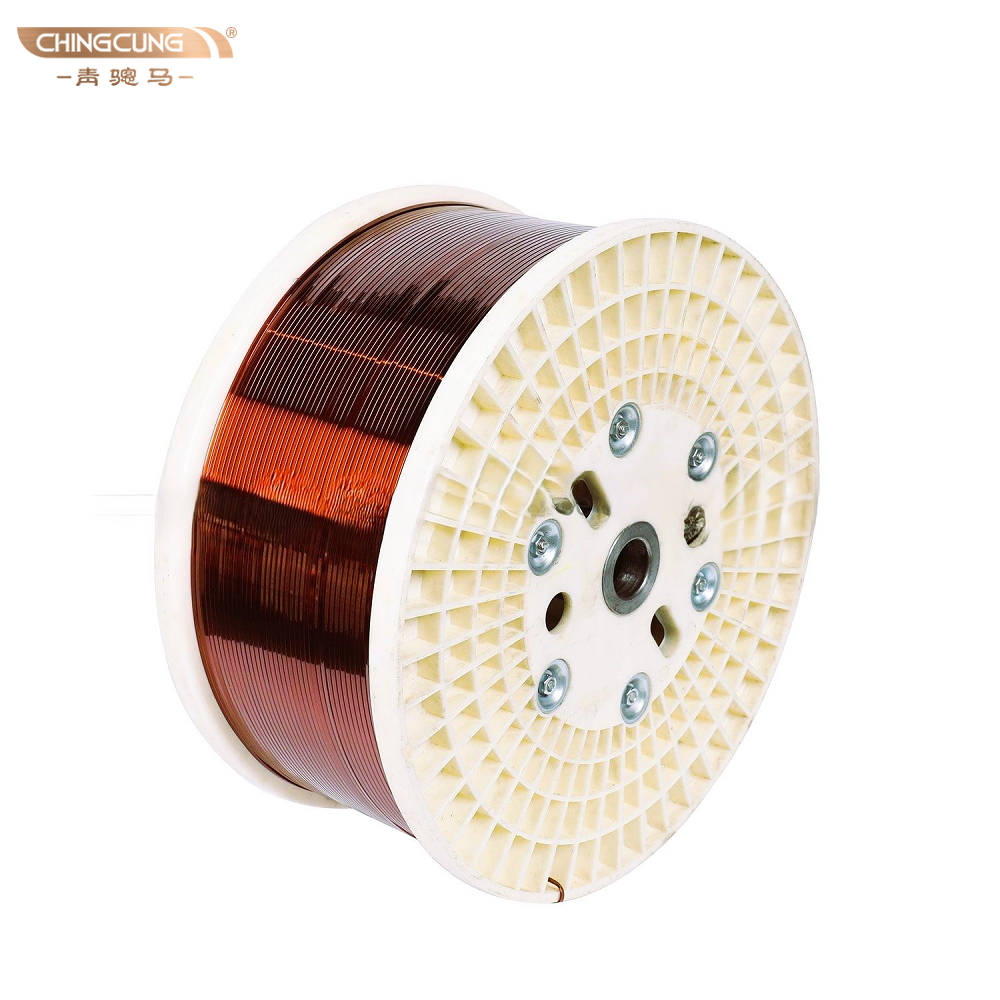

QZYB-2/180 Polyesterimide Enameled Rectangular Copper Winding Wire Images
|
